References | CGI Windows & Doors USA

Expanding the capacity

Precisely coordinated solutions for expanding storage capacities and increasing the efficiency of the production facility with a total plant size of 330,000 m² for window manufacturer CGI Windows & Doors in Florida, USA

Industry

Window construction industry

Objective

Expansion of the production facility's capacity

Installed META products

META CLIP boltless racking, META MULTISTRONG cantilever racking, META MULTIPAL pallet racking, META MULTIPAL A-frame racking Size of the system: 330,000 square feet

Details

67 bays of heavy duty cantilever racking for the storage of extruded aluminium profiles
3000 lbs weight load per cantilever and a total weight load of 9000 lbs per cantilever racking level
7 storage levels for single-sided cantilever racking, 14 storage levels for double-sided cantilever racking
224 steel racking bays with 1344 shelves for the storage of small parts
72 pallet racking bays with 1500 partition arms for the storage of finished windows

Impact-resistant windows & doors

CGI Windows & Doors manufactures premium impact-resistant windows and doors made to the most exacting industry standards. Their high-performance, highly aesthetic product collections provide advanced hurricane protection for residential and commercial buildings, for both new and existing construction.

CGI® is part of the PGT Innovations family of brands, which also includes PGT® Custom Windows Doors and WinDoor®.

PGT Innovations is a recognized leader in high-performance windows and doors. For more than 37 years, the company has focused on helping its customers meet market demands while enhancing the security of families, homes and businesses.

Jeremy Schweickert, Manager of Information Technology Operations

"We commissioned META to optimise warehousing in our new production facility. META's solutions have made a decisive contribution to rationalising our processes. META's products, from META CLIP boltless racking to META MULTIPAL pallet racking, offer unrivalled efficiency and adaptability. Their commitment to excellence aligns perfectly with our endeavour to deliver high performance windows and doors."

The challenge and the solution:

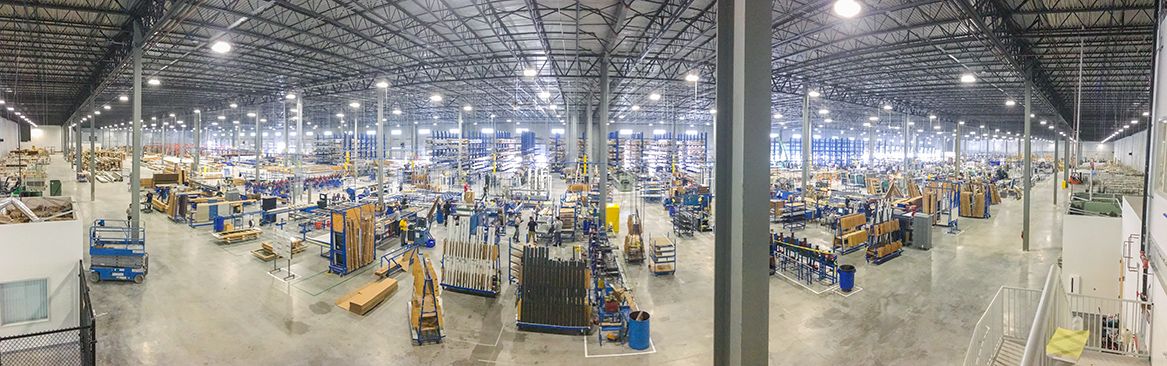

Due to the company's successful marketing and strong growth in Florida's construction industry, a new manufacturing facility is being built with efficient material handling and storage solutions. META assisted CGI Windows & Doors in the design and implementation of storage solutions for this new 330,000 square foot facility in Hialeah, which includes META CLIP boltless shelving systems, META MULTISTRONG cantilever shelving and META MULTIPAL pallet racking. META products provide CGI Windows & Doors with approximately 50,877 square feet of optimal storage space.

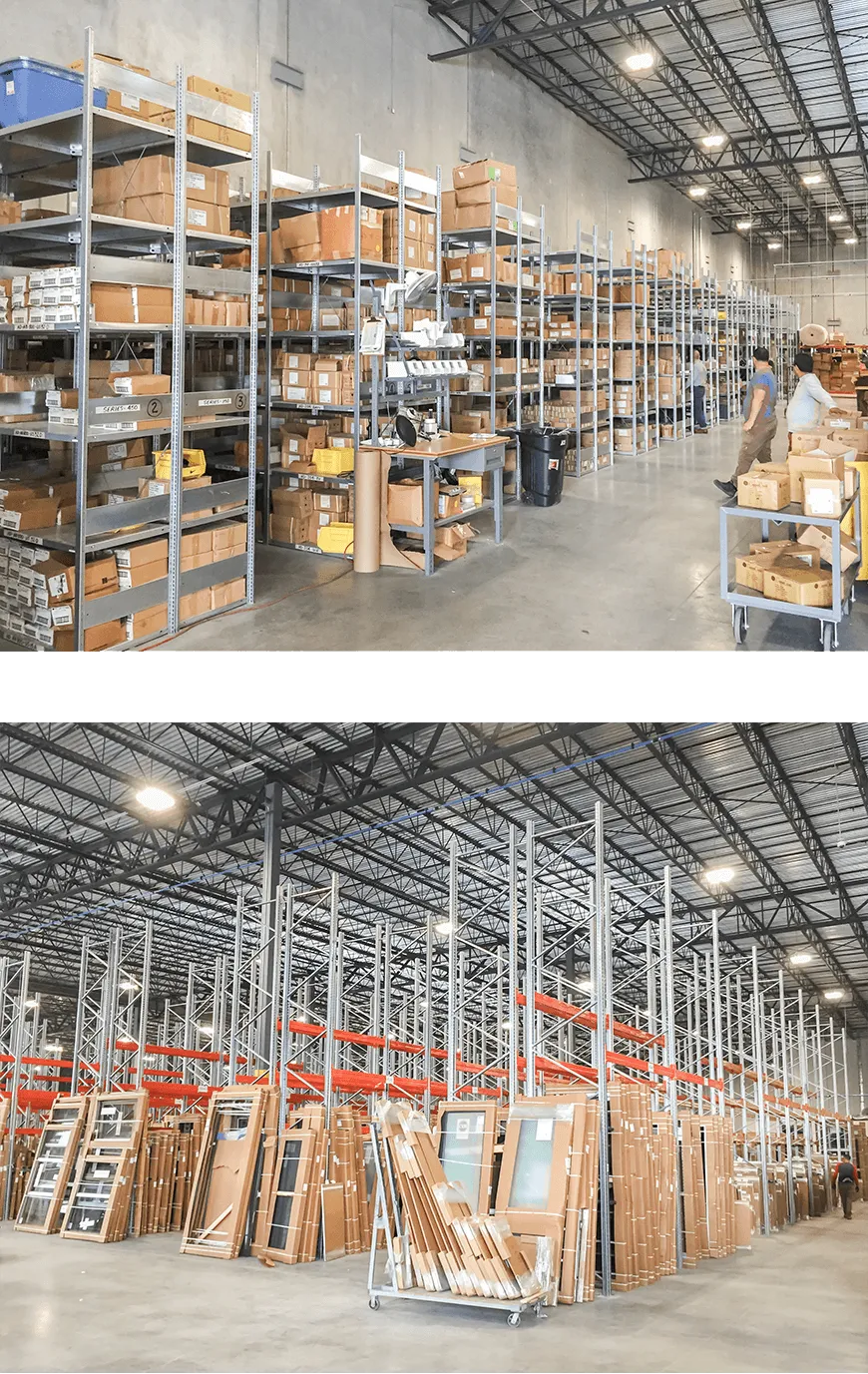

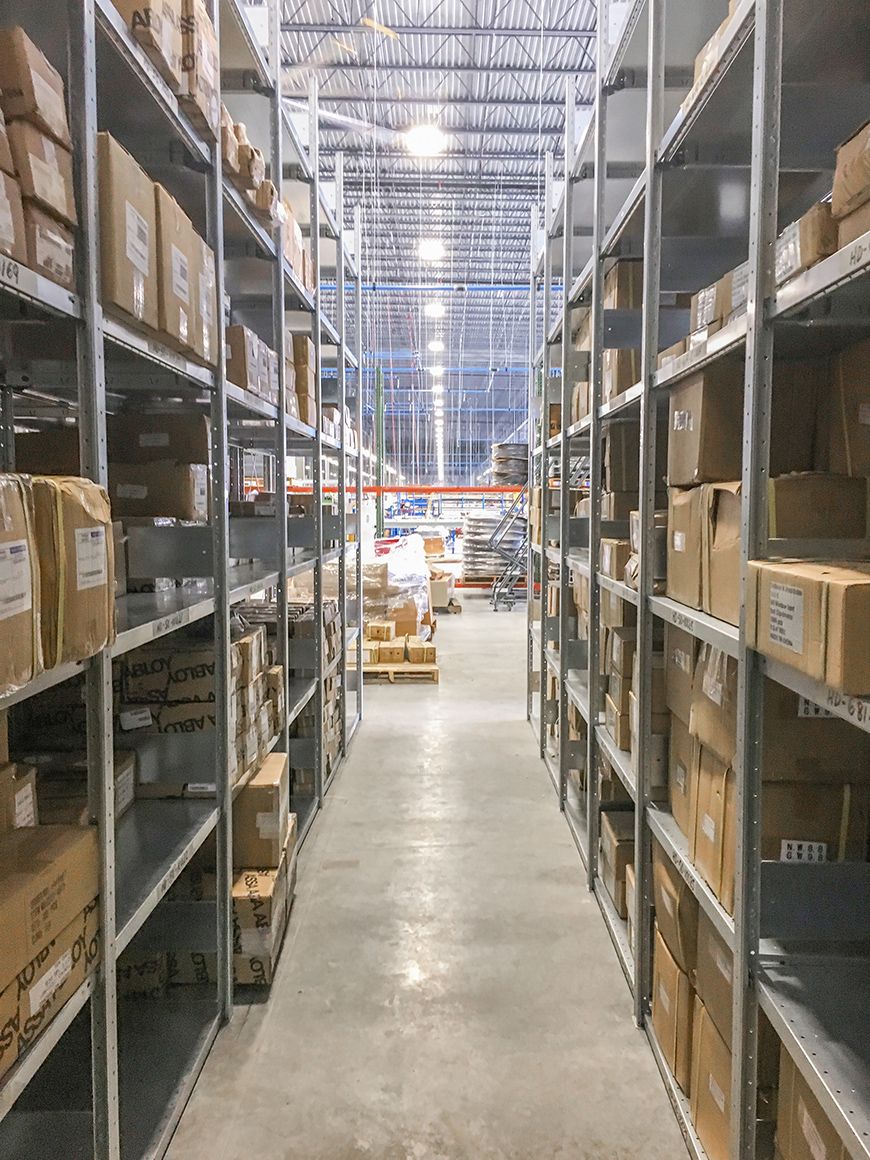

META CLIP boltless shelving offers quick and easy installation that saves both time and money. Covering an area of over 2,906 square metres, the system offers 1,344 shelves for the efficient storage and organisation of smaller window components. Shelf height can be adjusted in 1" increments. The system is designed so that additional shelves can be added to accommodate CGI's future growth.
The META MULTISTRONG cantilever racking system provides horizontal storage for aluminium extrusions and other raw materials needed to manufacture windows. The system features 20' high racks with a floor area of 35,137 square metres. These racks can support heavy loads without difficulty. Each bay of the system is cross-braced to ensure the stability of the high racks. The system consists of both single-sided and double-sided cantilever racking for optimal utilisation of the allocated storage space.

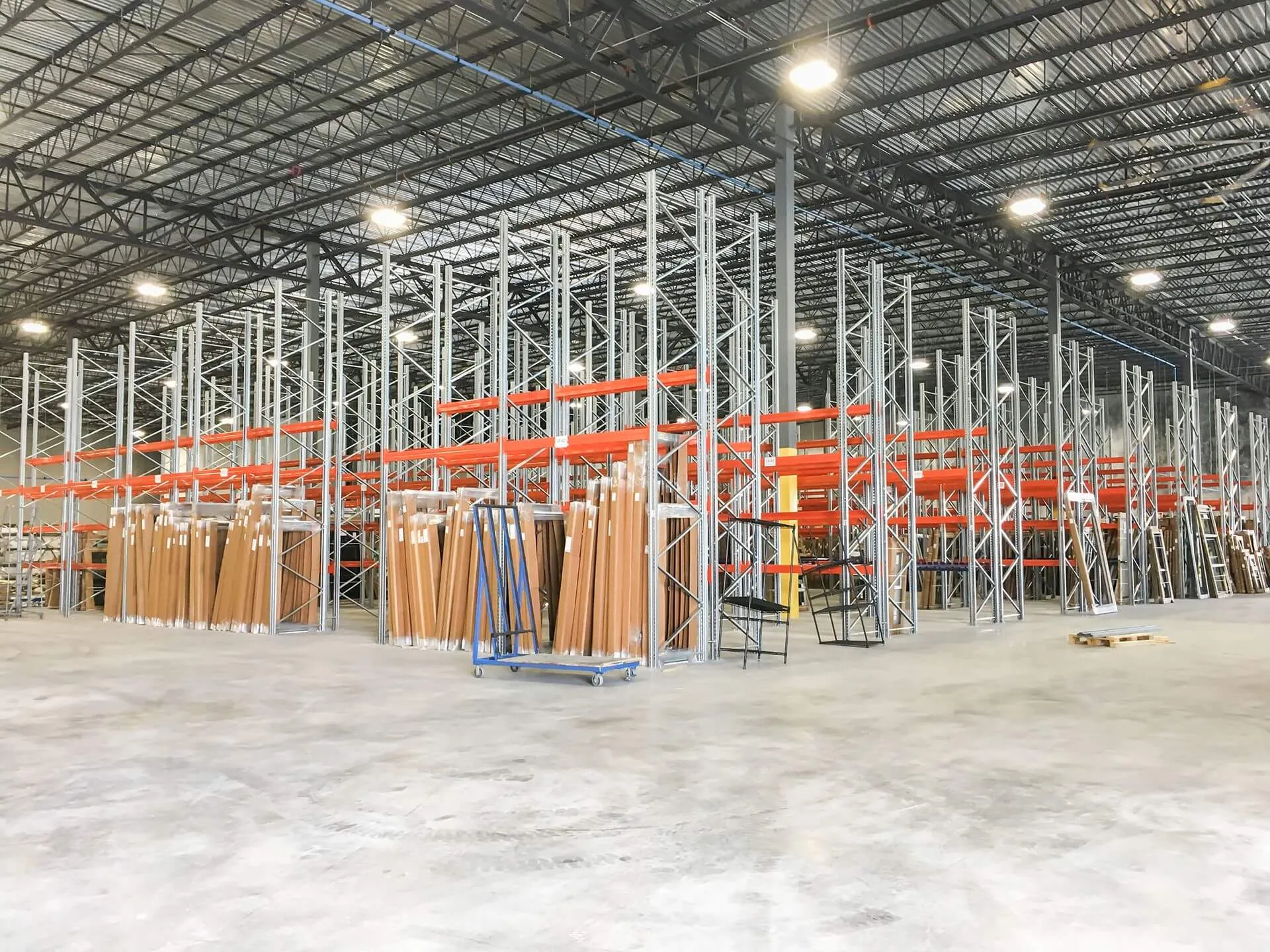

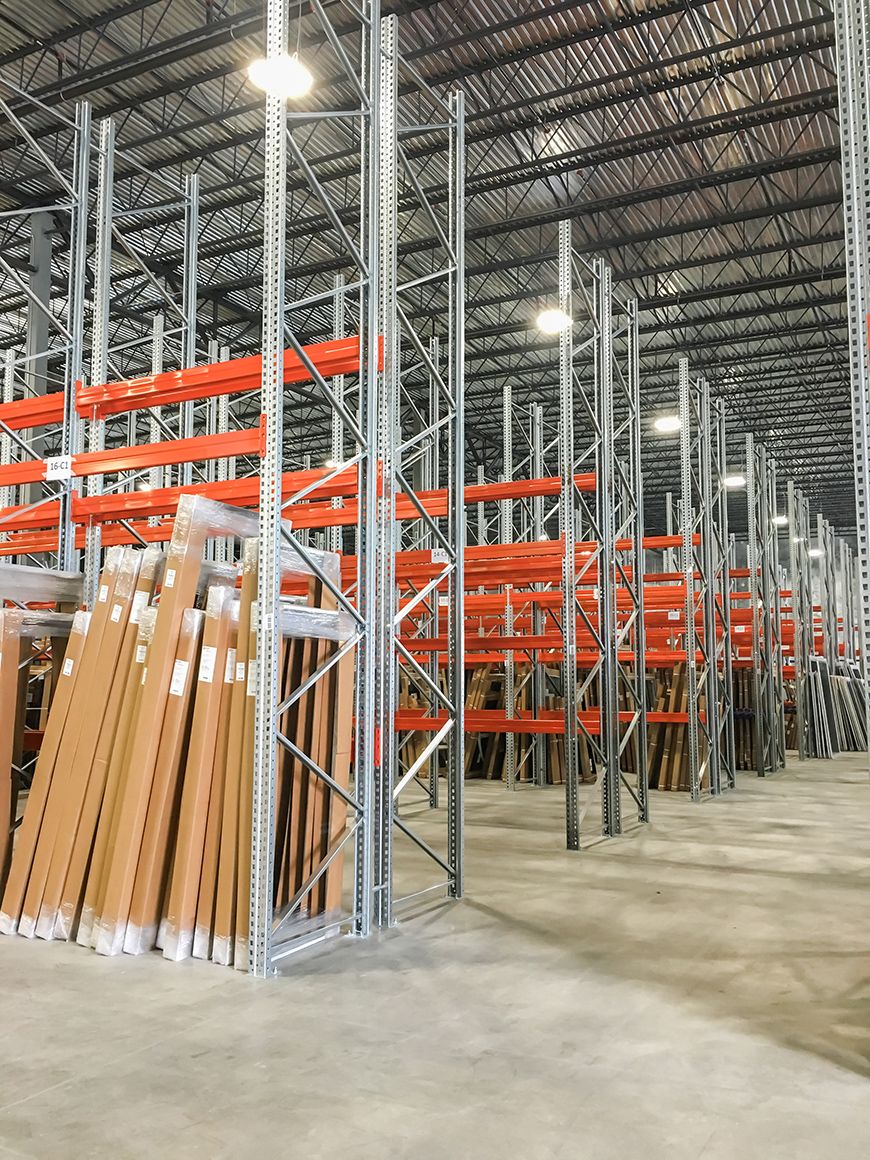

The facility also features a META MULTIPAL pallet racking system and a META MULTIPAL A-Frame racking system, which is equipped with dividing arms for easy storage of heavy-duty windows. These racks allow products to be stored lengthways or crossways over an area of 12,834 square metres. The closed box profiles of the racks ensure stability to withstand high loads. The beams can be adjusted in vertical increments of 2". META products are very easy to install and extremely flexible, allowing customers to adapt quickly to growing and changing market requirements.
